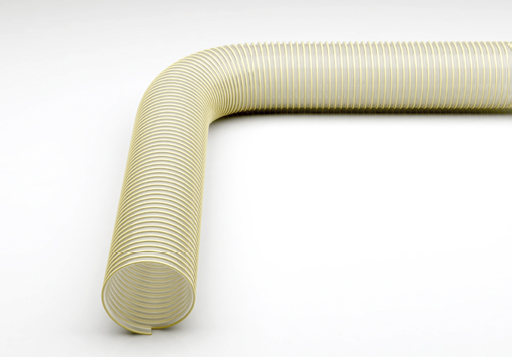

PU wear-resistant hose Master PUR HX

PU suction&conveying hose, highly wear-resistant, vacuum resistant, with reinforced spiral reinforcement ring

Material

Spiral coil: spiral steel wire

Pipe wall: Polyester polyurethane (compliant with DIN ISO 4649 standard, more wear-resistant than polyether polyurethane) with a wall thickness of approximately 1.7-2.1mm depending on the pipe diameter

Application

● Meet the highest requirements for service life and wear resistance

● Suction/delivery hose, especially suitable for wear-resistant solids

● Gravel conveying hose

● Work hoses on trucks and load equipment

● Conveyor hose, used for uncertain media such as sand, gravel, grains and other particulate matter

Property

● No plasticizers or halogenating agents

● Composite spiral reinforcement layer

● High vacuum and pressure levels

● Good bendability

●Smooth inner wall

● High durability, long service life

● Good resistance to drugs

● Good UV and ozone resistance

● Good oil resistance

● Good airtightness

● High tensile strength

●According to TRBS 2153 requirements, it is used for non combustible dust/loose particles and low conductivity. The metal wire should be grounded at both ends to ensure the elimination of static electricity

● Anti microbial measures

● Anti static, surface resistance<109 ohms

temperature range

● -40 ℃ to 90 ℃

● Can reach+125 ℃ in a short time
