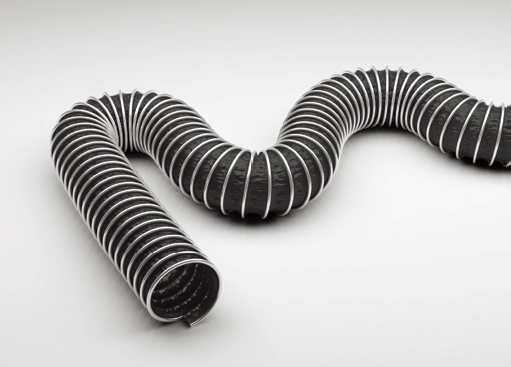

Anti static conductive hose Master Clip VINYL EL

Suction hose, polyester clip fabric with PVC coating, conductive, surface resistance<106 ohms

Material

External spiral coil: galvanized steel strip

Pipe wall: Polyester woven fabric with PVC coating, conductive, surface resistance<106 ohms

Application

● Low pressure environment

●Conductive hose, used in hazardous areas that require anti-static measures, compliant with TRBS standards

● Suction hose, used for corrosive media, explosive gases, and exhaust gases

● Suction equipment

● Air delivery for explosion prevention areas

● Requirements for the mechanical industry

Property

● Small bending radius

● Good mechanical load resistance performance

● Easy to bend

●Surface resistance<106 ohms

● Anti vibration

●Excellent compressibility, with a compression ratio of up to 1:6

●The outer spiral coil protects the pipe wall from wear and tear

●Special clamping method ensures high tensile strength between the hose material and the external spiral steel wire

●According to TRBS 2153 requirements, it is suitable for low conductivity combustible dust and gases. The spiral coil should be grounded and the two ends of the spiral should ensure the dissipation of static electricity.

●Durable pipe wall material

temperature range

● -20 ℃ to 70 ℃

● Can reach+80 ℃ in a short time
