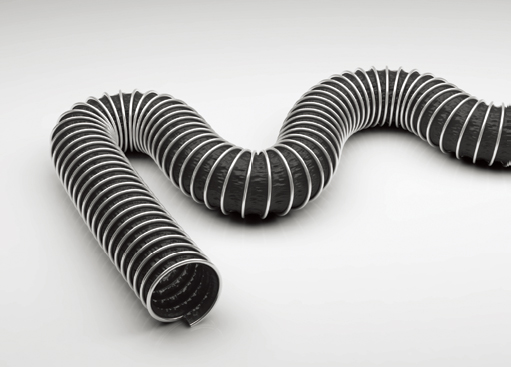

Anti static conductive hose Master Clip VINYL A
Suction/delivery hose, polyester clip fabric with PVC coating, conductive, surface resistance ≤ 108 ohms
Material
External spiral coil: galvanized steel strip
Pipe wall: Polyester woven fabric with PVC coating, anti-static, surface resistance ≤ 108 ohms
Application
● Low pressure environment
● Has high safety requirements
● Air conditioning and ventilation system
● Suction equipment
● Air exchange
Property
● Very light
● Small bending radius
● Easy to bend
●Conductivity, surface resistance ≤ 108 ohms
●Excellent compressibility, with a compression ratio of up to 1:6
●The outer spiral coil protects the pipe wall from wear and tear
●Special clamping method ensures high tensile strength between the hose material and the external spiral steel wire
● Resistance to mechanical resistance
● Durable
●According to TRBS 2153 requirements, suitable for combustible dust and gases. The spiral coil should be grounded and the two ends of the spiral should ensure the dissipation of static electricity.
temperature range
● -20 ℃ to 70 ℃
● Can reach+80 ℃ in a short time
